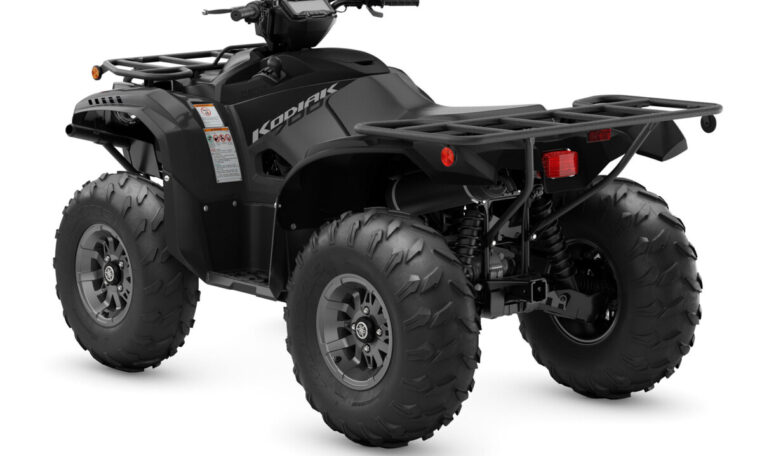

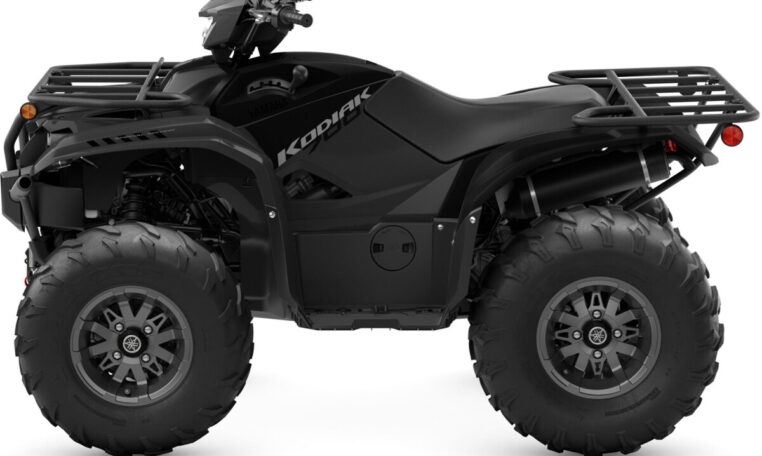

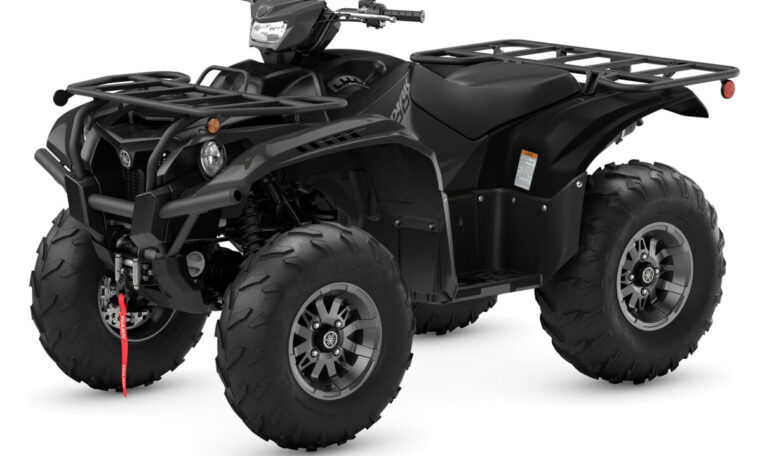

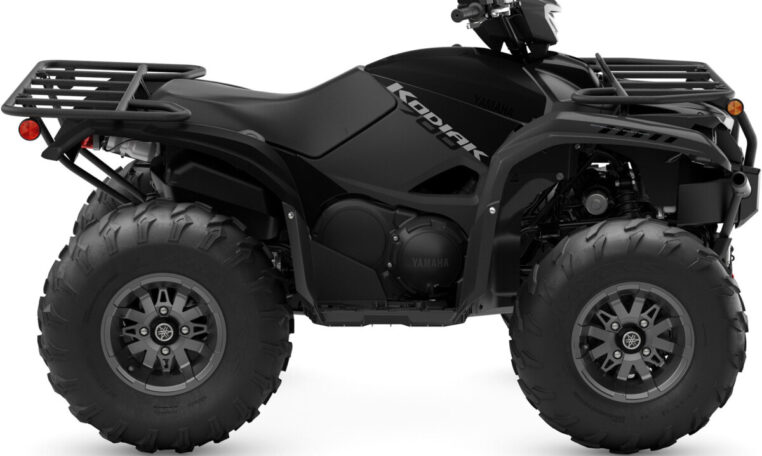

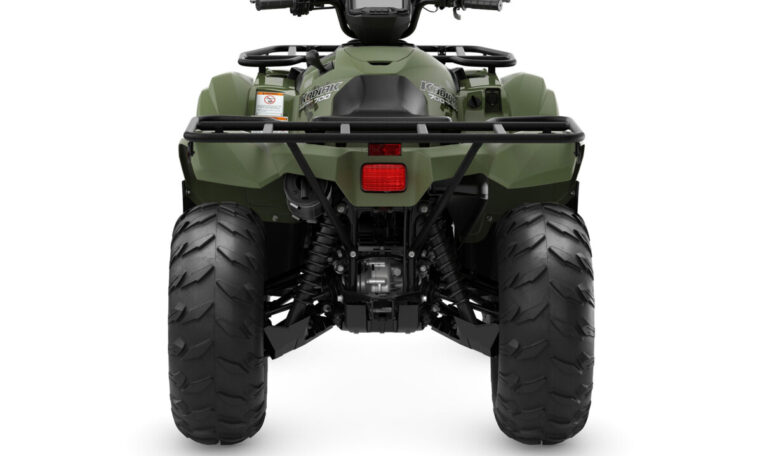

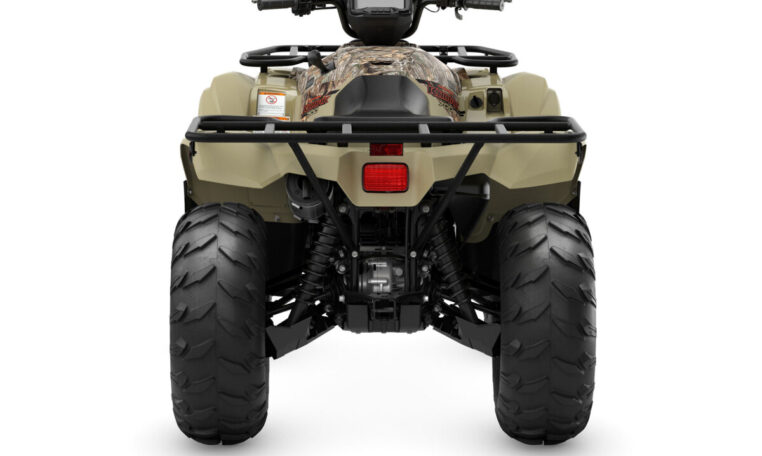

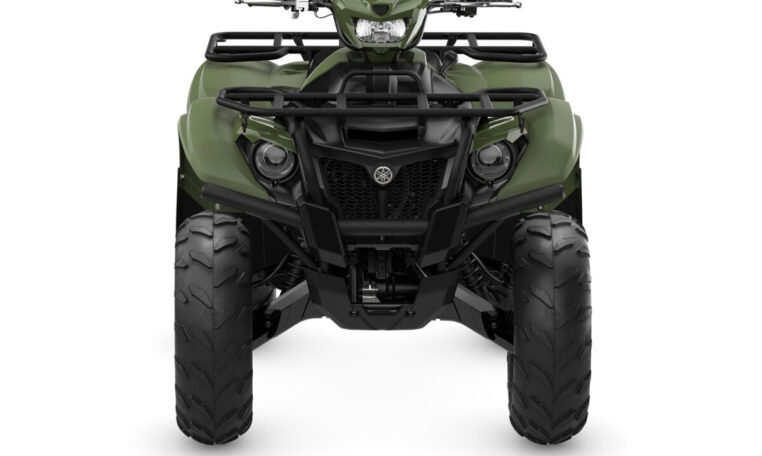

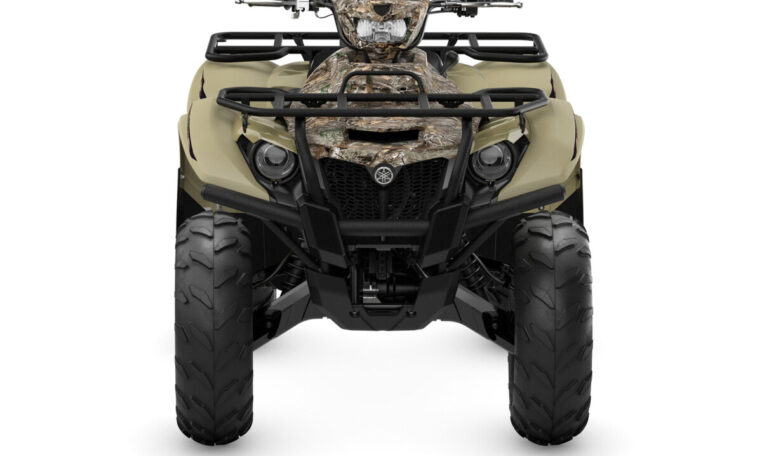

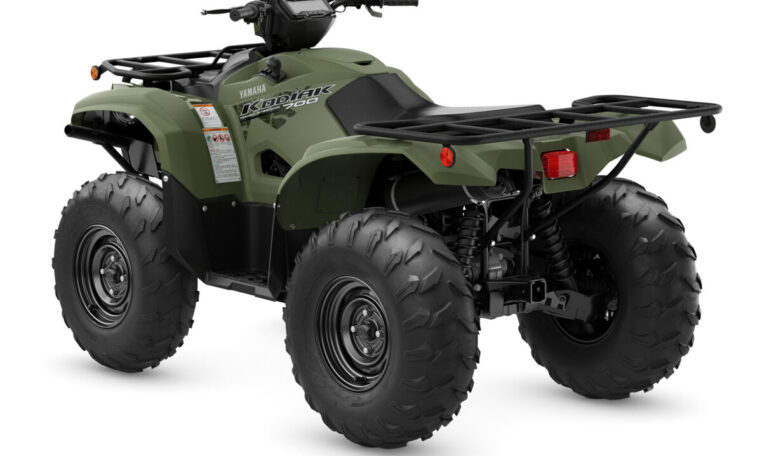

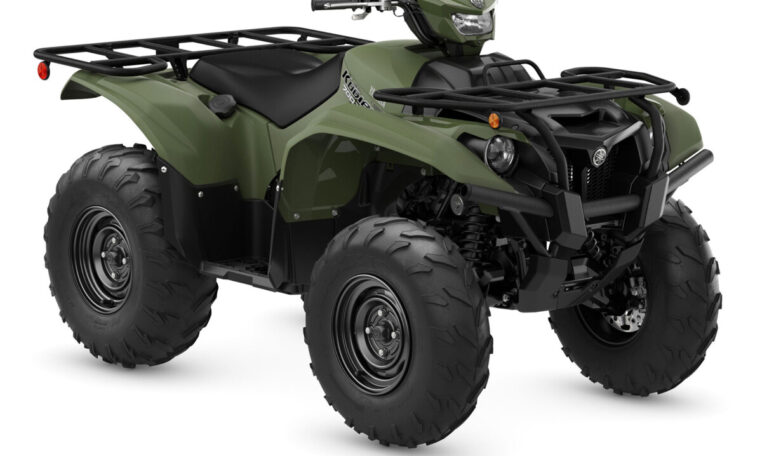

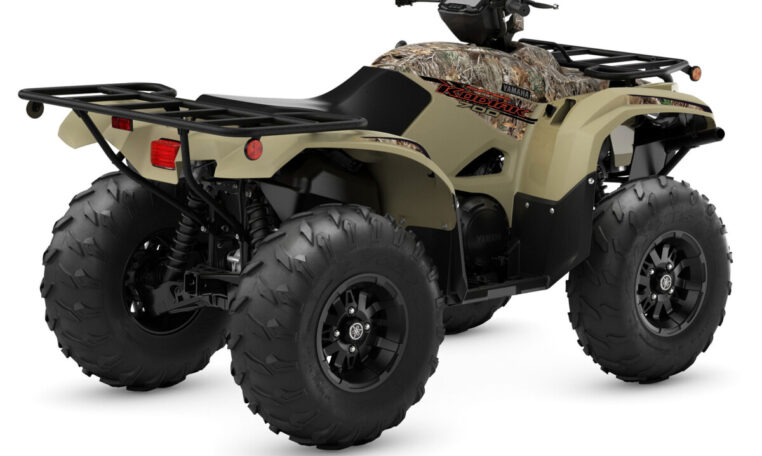

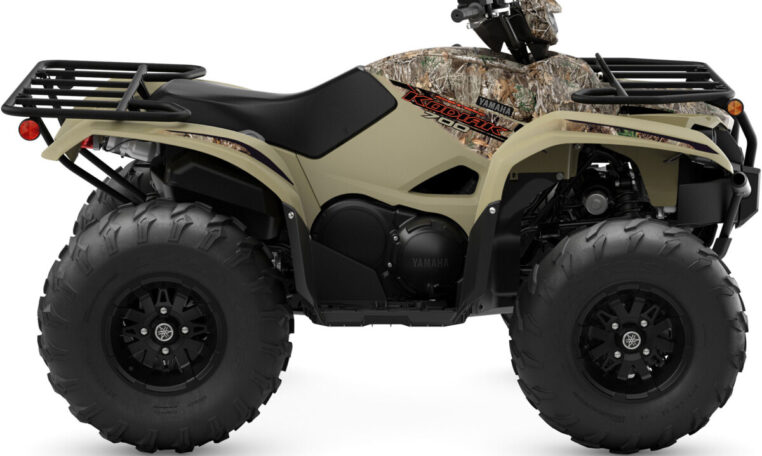

2023 Kodiak 700 EPS

There’s work to be done and the Kodiak 700 EPS is ready. Equipped with all the features you need including a 2″ trailer hitch receiver, pushbutton On-Command 4WD system, and optimized low-end torque, the Kodiak 700 EPS does not shy away from any job. Offering Proven Off‑Road capability and comfort during all-day rides, regardless if they are filled with chores or trail adventures.

There are no features available

Chassis
Suspension (Front)	Independent double wishbone; 5-way preload adjustment / 180 mm (7.1") of wheel travel
Suspension (Rear)	Adjustable independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel
Brakes (Front)	Dual hydraulic disc
Brakes (Rear)	Multi-Disc wet brake
Tires (Front)	Maxxis MU19, AT25 x 8-12
Tires (Rear)	Maxxis MU20, AT25 x 10-12

Critical Data
Length	2070 mm (81.5")
Width	1180 mm (46.5")
Height	1240 mm (48.8")
Wheelbase	1250 mm (49.2")
Maximum Ground Clearance	274 mm (10.8")
Turn Radius	3200 mm (126")
Tread (Front)	940 mm (37")
Tread (Rear)	915 mm (36")
Seat Height	860 mm (33.9")
Wet Weight	311 kg (686 lb)
Fuel Capacity	18 L
Rack Capacity (Front)	50 kg (110 lb)
Rack Capacity (Rear)	90 kg (198 lb)
Towing Capacity	600 kg (1,322 lb)

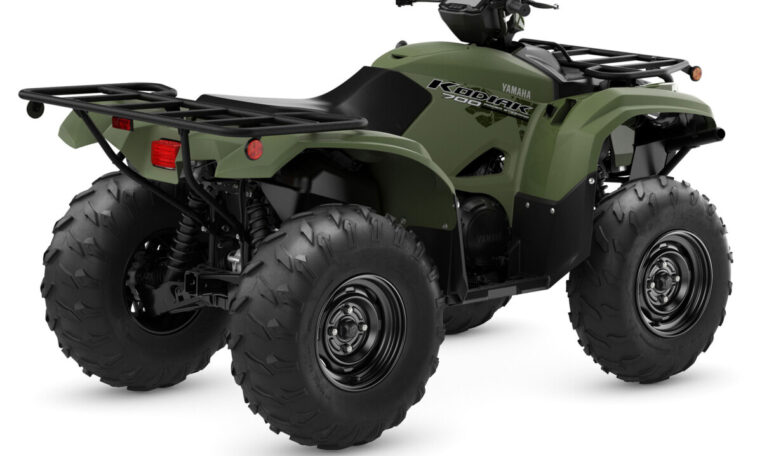

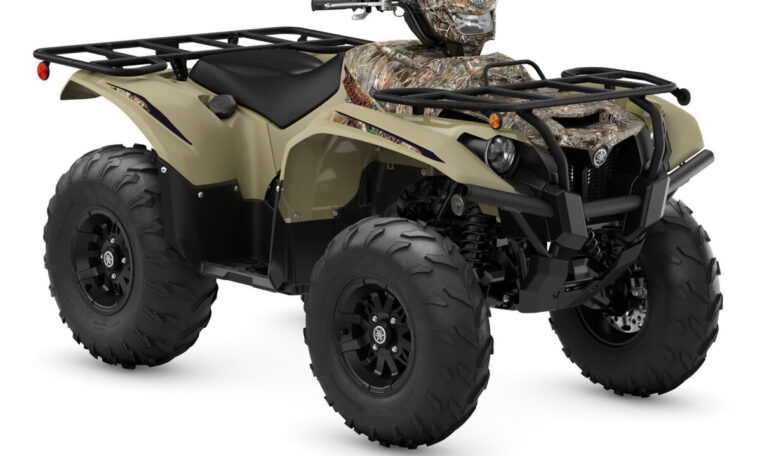

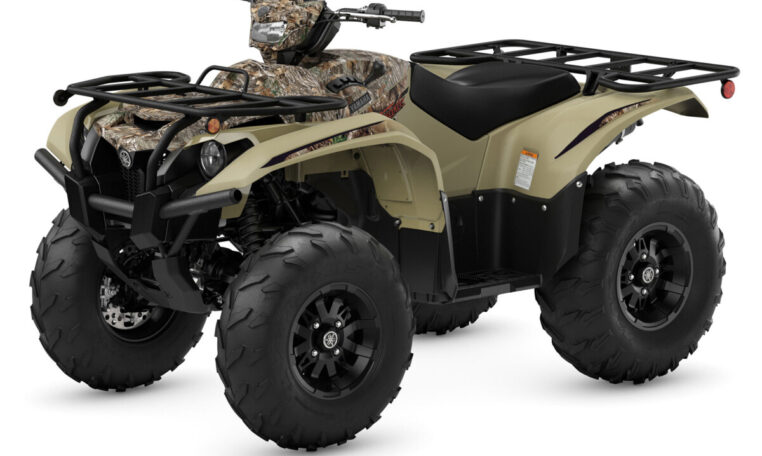

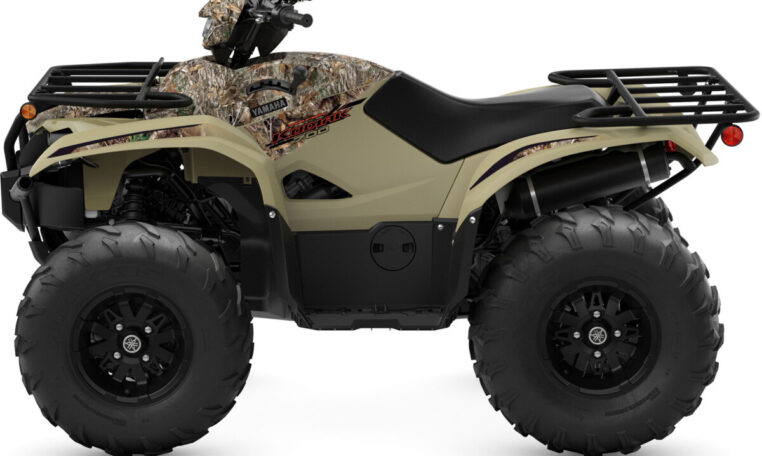

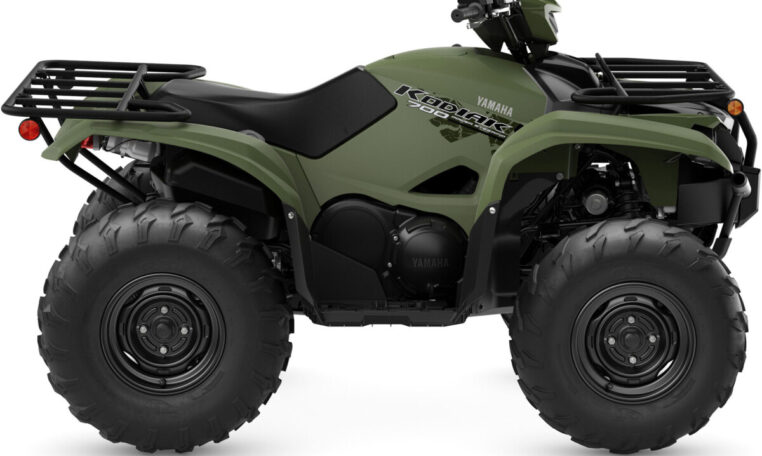

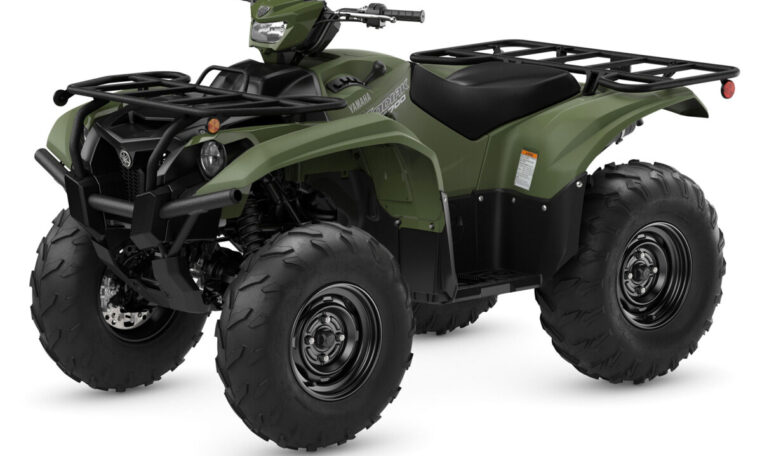

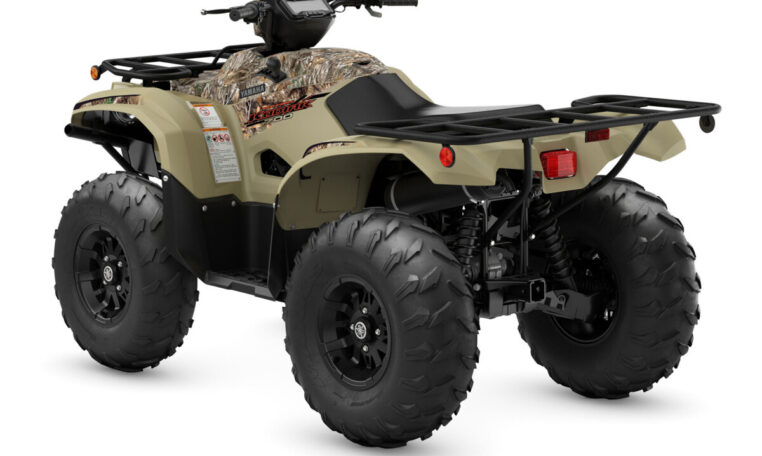

Colour(s)	Tactical Green Realtree Edge Camouflage
Warranty	One year (unlimited mileage)

Engine
Engine	Liquid-cooled, SOHC 4-stroke
Displacement	686cc
Bore and Stroke	102 mm x 84 mm
Compression Ratio	10 : 1
Fuel Delivery	Yamaha Fuel Injection (YFI), 44 mm
Ignition	TCI
Starting	Electric
Lubrication	Wet sump
Transmission	Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Final Drive	On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
