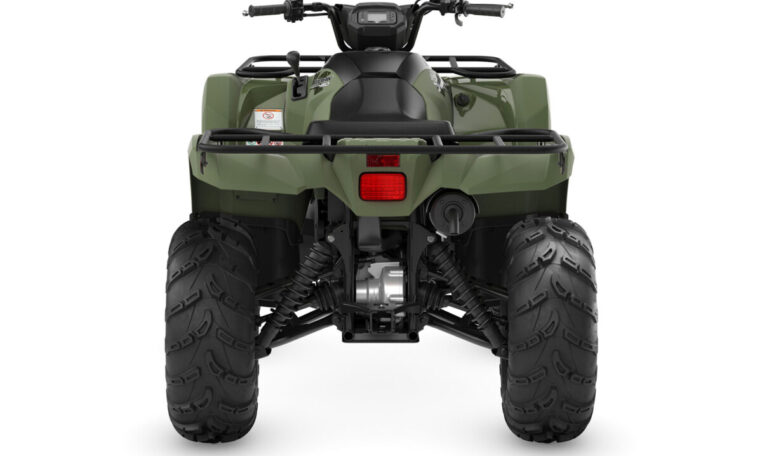

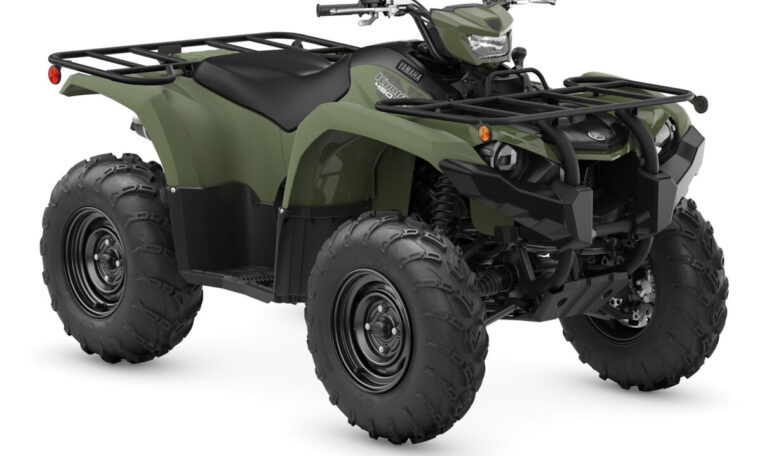

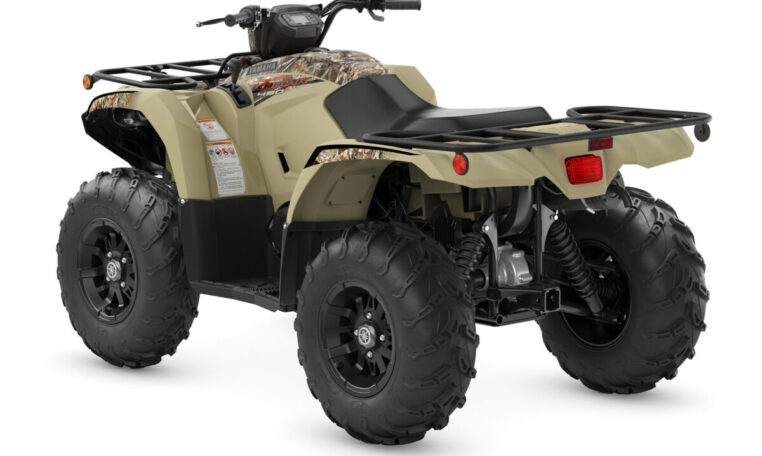

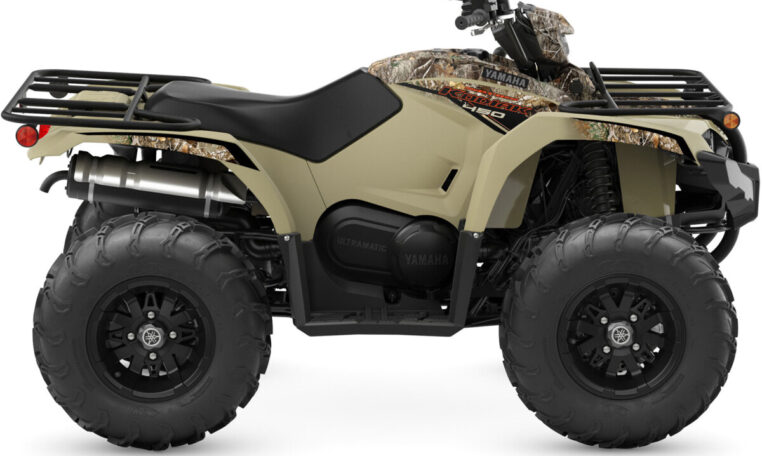

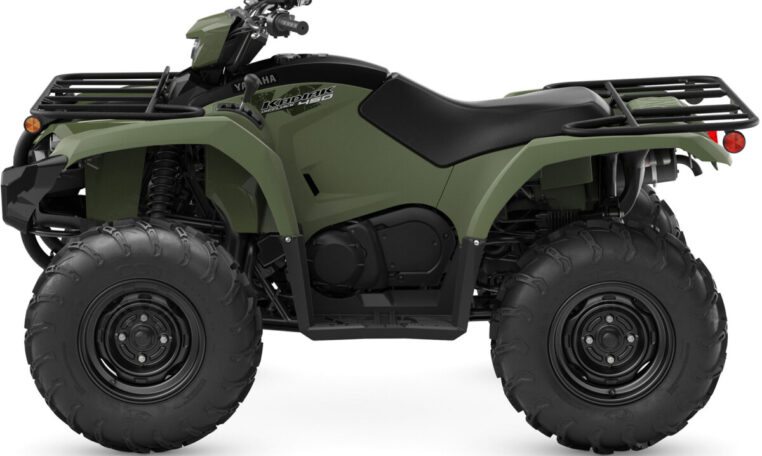

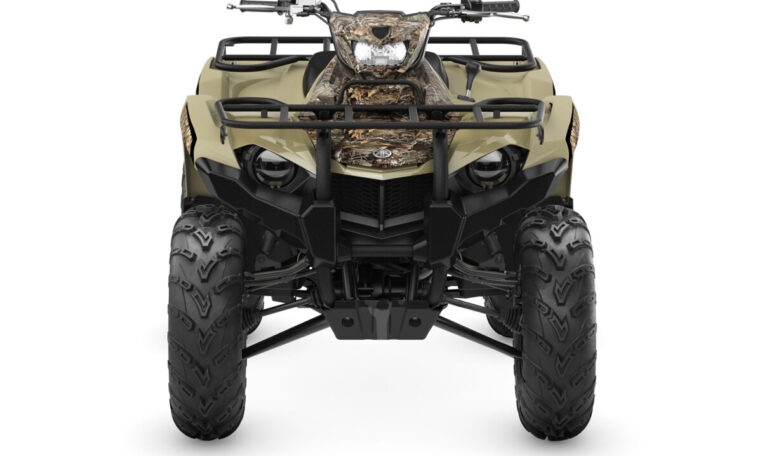

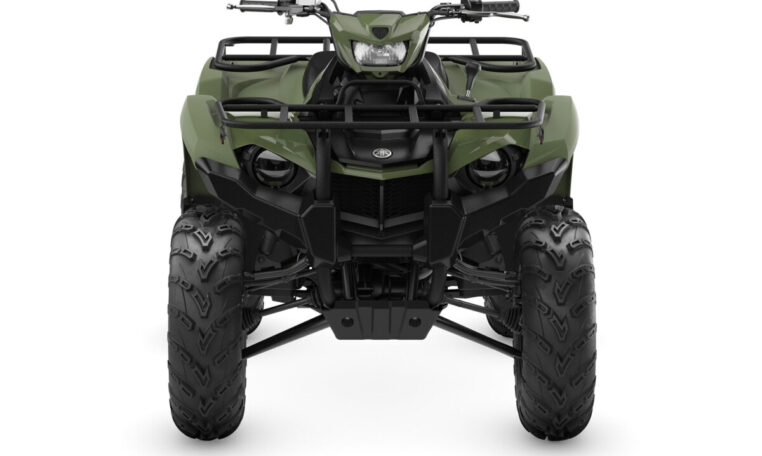

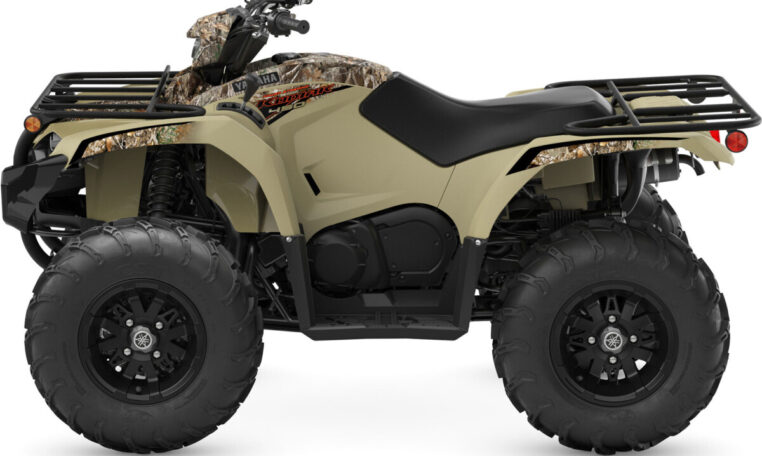

2023 Kodiak450 EPS

The Kodiak 450 EPS offers ultimate value as the most versatile ATV in its class. With electronic power steering, Yamaha’s exclusive On-Command® 4WD, high-capacity electric fan cooling system, and rubber engine mounts for an exceptionally smooth ride, This Proven Off‑Road ATV packs superior capability, comfort and confidence into the best‑performing mid‑size ATV you can buy.

There are no features available

Chassis
Suspension (Front)	Independent double wishbone / 171 mm (6.7") of wheel travel
Suspension (Rear)	Independent double wishbone / 189 mm (7.4") of wheel travel
Brakes (Front)	Dual hydraulic disc
Brakes (Rear)	Multi-Disc wet brake
Tires (Front)	AT25 x 8-12
Tires (Rear)	AT25 x 10-12

Critical Data
Wet Weight	295 kg (650 lb)
Fuel Capacity	16.8 L (3.7 Imp. Gal)
Rack Capacity (Front)	40 kg (88 lb)
Rack Capacity (Rear)	80 kg (176 lb)
Towing Capacity	600 kg (1,322 lb)

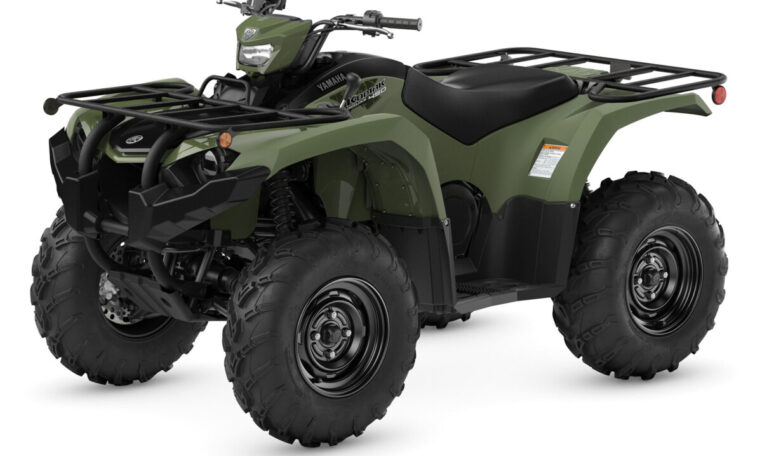

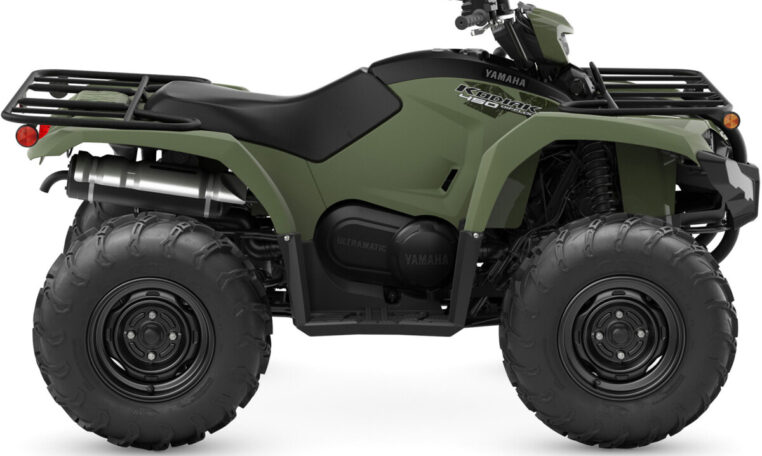

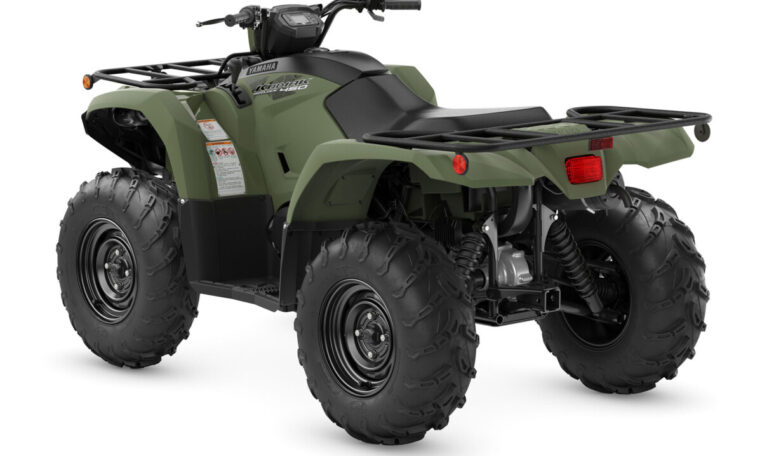

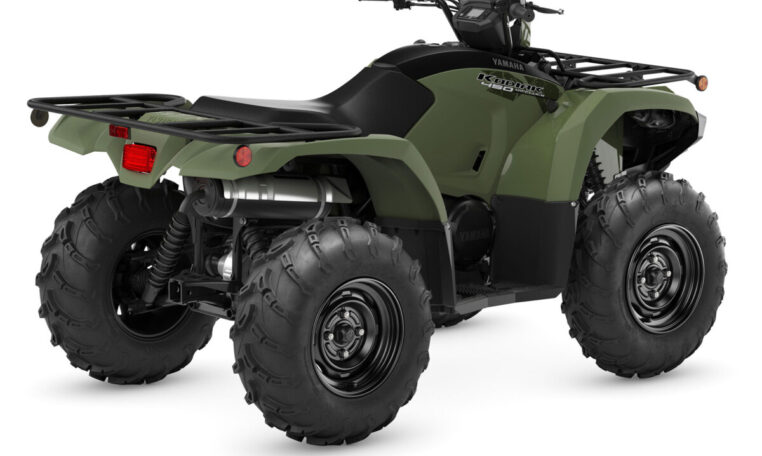

Colour(s)	Tactical Green
Warranty	One year (unlimited mileage)
Length	2035 mm (80.1")
Width	1180 mm (46.5")
Height	1160 mm (45.7")
Wheelbase	1240 mm (48.8")
Maximum Ground Clearance	245 mm (9.6")
Turn Radius	3.2 m (126")
Tread (Front)	930 mm (36.6")
Tread (Rear)	935 mm (36.8")
Seat Height	855 mm (33.7")

Engine
Engine	Liquid-cooled, SOHC 4-stroke, 2-valves
Displacement	421 cc
Bore and Stroke	84.5 mm x 75 mm
Compression Ratio	10:1
Fuel Delivery	Yamaha Fuel Injection (YFI), 34 mm
Ignition	TCI
Starting	Electric
Lubrication	Wet sump
Transmission	Ultramatic V-Belt with all-wheel engine braking; H, L, N, R, P
Final Drive	On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
