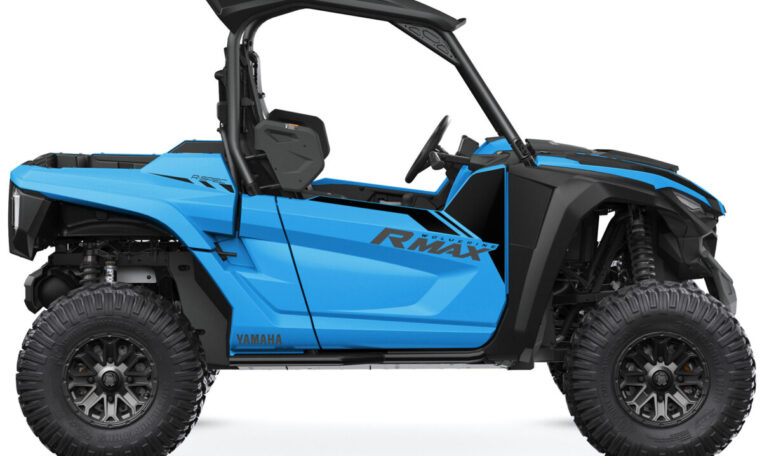

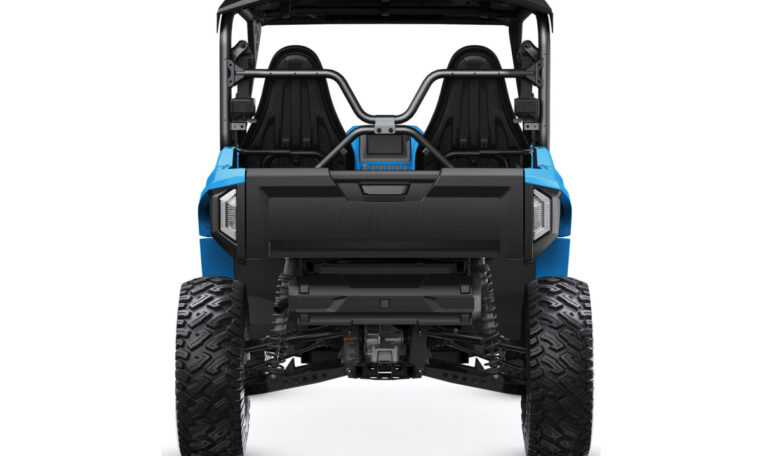

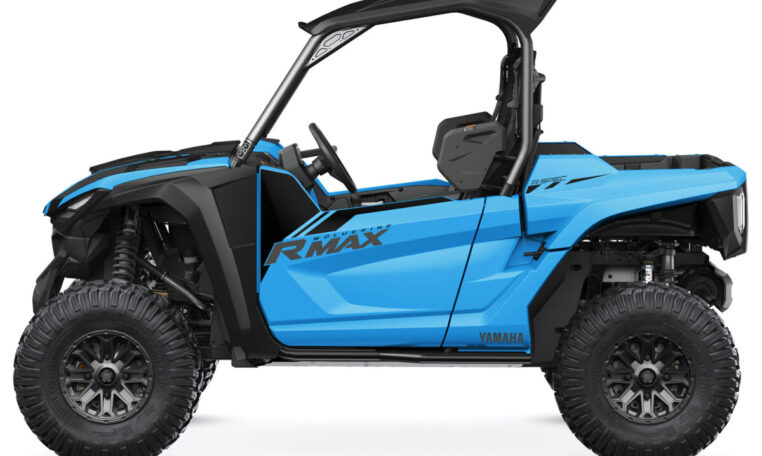

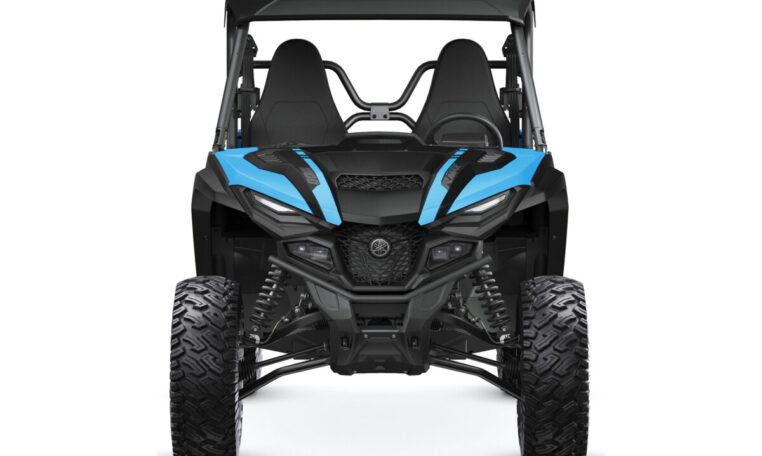

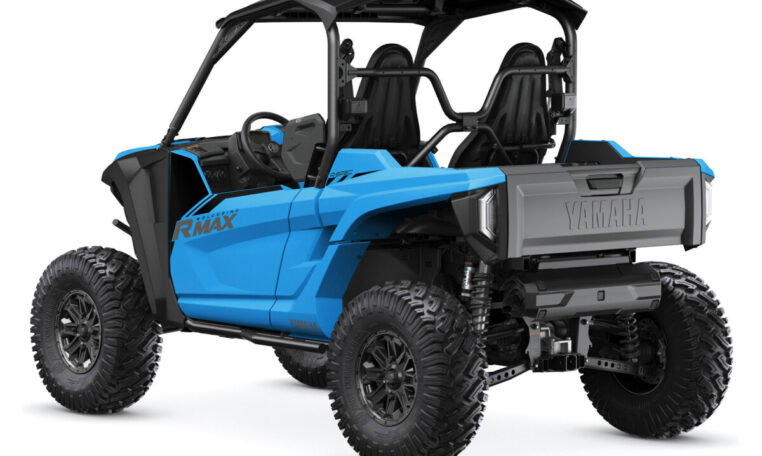

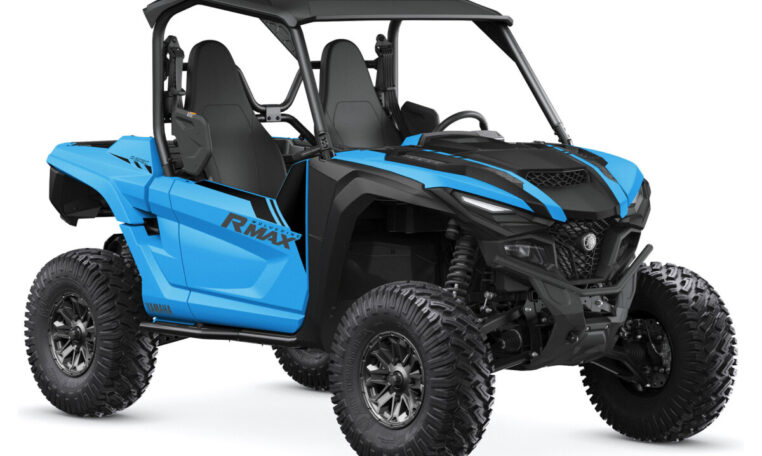

2023 Yamaha Wolverine RMAX2 1000 R-SPEC

Experience maximum adventure in the power-packed Wolverine® RMAX™2 1000 EPS. Boasting the 999cc engine capability, maxed-out cabin comfort and legendary Yamaha confidence, while still keeping in line with the X2 as the ultimate work-play vehicle thanks to its versatile cargo bed.

There are no features available

Chassis
Suspension (Front)	Independent double wishbone w/anti-sway bar, FOX QS3 piggyback shocks; 14.2-in travel
Suspension (Rear)	Independent double wishbone, FOX QS3 piggyback shocks; 16.9-in travel
Brakes (Front)	Hydraulic disc brake
Brakes (Rear)	Hydraulic disc brake
Tires (Front)	30 x 10.00R-14 Maxxis® Carnivore™
Tires (Rear)	30 x 10.00R-14 Maxxis® Carnivore™

Critical Data
Length	3030 mm (119.3")
Width	1678 mm (66.1")
Height	1976 mm (77.8")
Stance Width	1625 mm (64")
Ground Clearance	340 mm (13.8")
Fuel Capacity	35 L (9.2 Gal.)
Wet Weight	837 kg (1845.3 lb)
Bed Capacity	272 kg (600 lb)
Towing Capacity	907 kg (2000 lb)
Warranty	Private use - 1 year (unlimited mileage) Commercial use - 6 months (unlimited mileage)
Colour(s)	Armour Grey, Yellow

Engine
Engine	999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore and Stroke	93.0mm×73.5mm
Compression Ratio	11.2:1
Fuel Delivery	Yamaha Fuel Injection (YFI)
Ignition	TCI: Transistor Controlled Ignition
Starting	Electric
Lubrication	Dry sump
Transmission	Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive	On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
