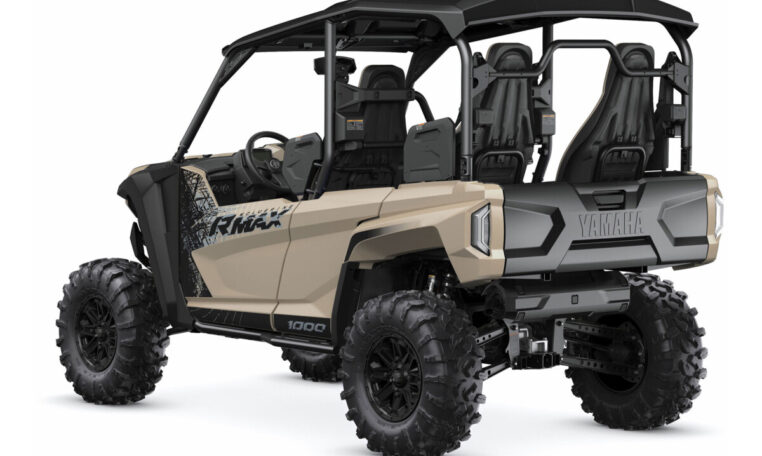

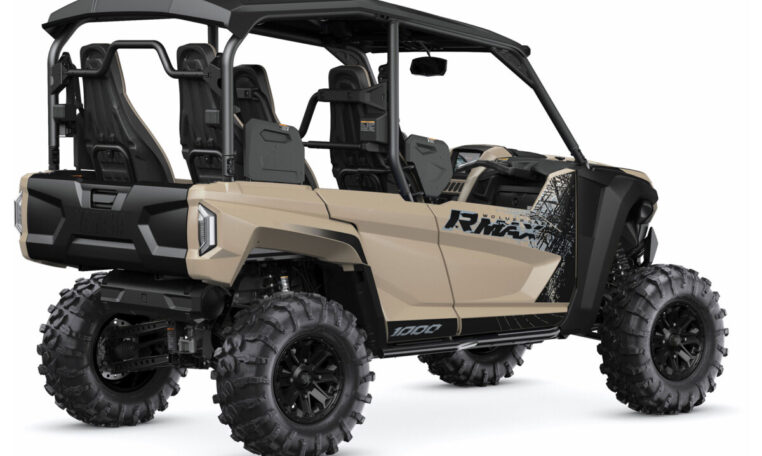

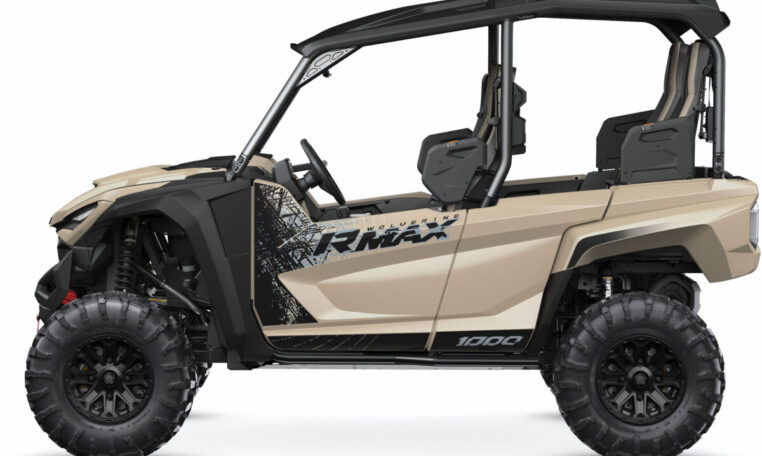

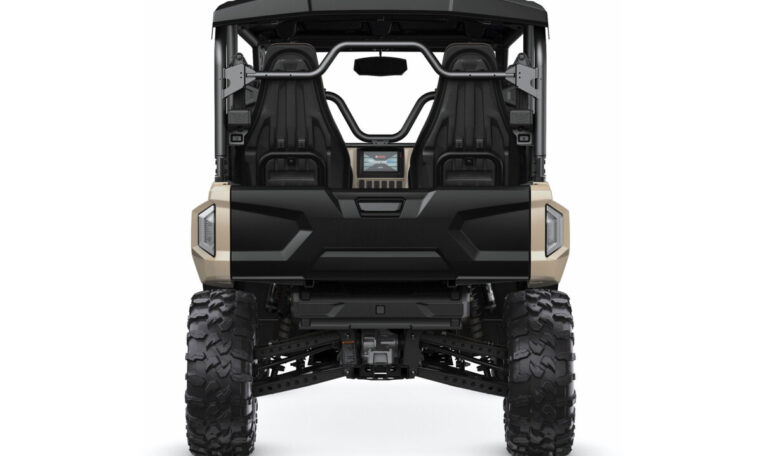

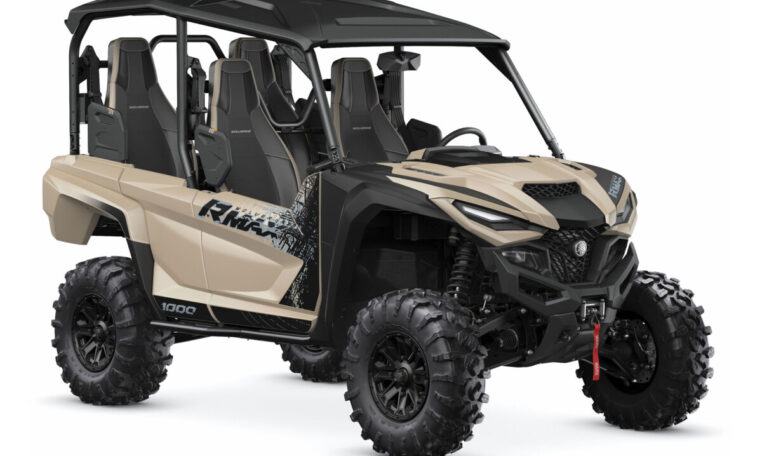

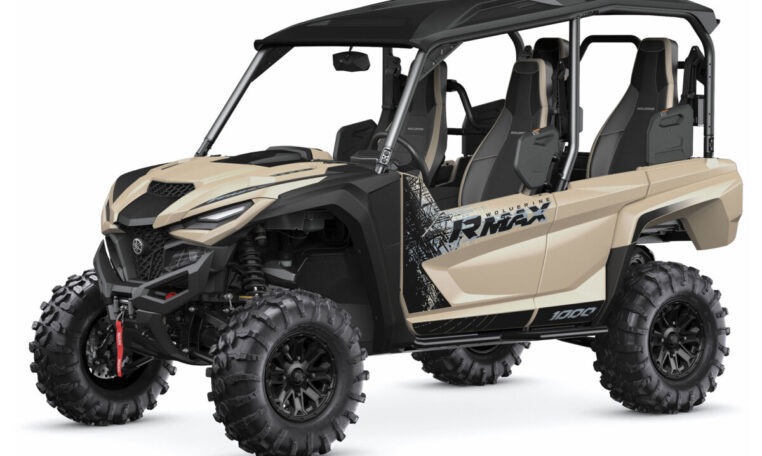

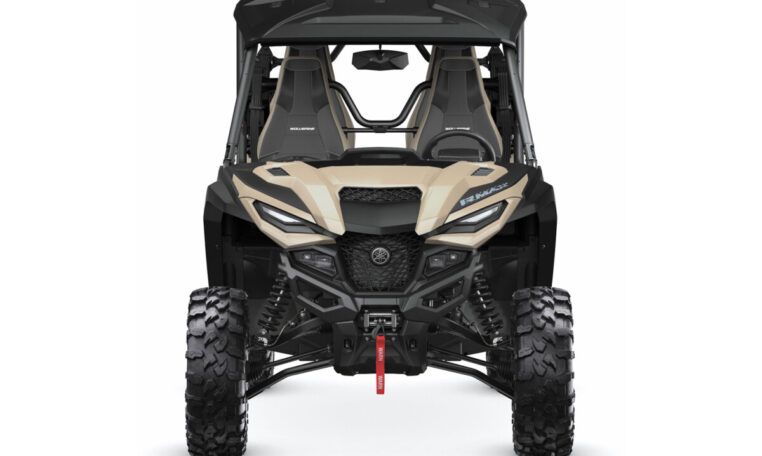

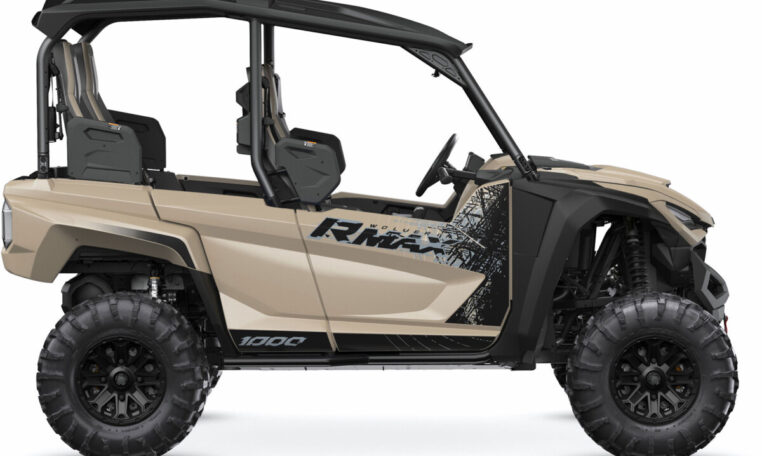

2023 WOLVERINE® RMAX4™ 1000 SE
Experience extreme adventure with maximum cabin comfort and confidence thanks to a factory-installed WARN winch, stylish Special Edition paint, colour-matched wheels and aggressive tread Maxxis Carnage tires. The Wolverine® RMAX™4 1000 SE is Feature-rich and power-packed for max comfort and versatility with best-in-class power delivery and more cabin comfort touch-points than any other vehicle in its class…
- There are no features available
Chassis | |
---|---|
Suspension (Front) | Independent double wishbone w/anti-sway bar, FOX® QS3 piggyback shocks; 14.2-in travel |
Suspension (Rear) | Independent double wishbone w/anti-sway bar, FOX® QS3 piggyback shocks; 13.3-in travel |
Brakes (Front) | Dual hydraulic disc |
Brakes (Rear) | Dual hydraulic disc |
Tires (Front) | 29 x 9.00R-14 Maxxis® Carnage™ |
Tires (Rear) | 29 x 11.00R-14 Maxxis® Carnage™ |
Critical Data | |
---|---|
Length | 3251 mm (128.1") |
Width | 1676 mm (66") |
Height | 2110.74 mm (83.1") |
Wheelbase | 2291 mm (90.2") |
Turning radius | 5994 mm (236") |
Ground Clearance | 340 mm (13.4") |
Fuel Capacity | 35 L (9.2 Gal) |
Wet Weight | 904 kg (1993 lb) |
Bed Capacity | 272 kg (600 lb) |
Towing Capacity | 907 kg (2,000 lb) |
Warranty | Private use - 1 year (unlimited mileage) Commercial use - 6 months (unlimited mileage) |
Colour(s) | Tactical Black, Carbon Metallic |
Engine | |
---|---|
Engine | 999cc liquid cooled, 4-stroke, DOHC, 4-valve |
Bore and Stroke | 93.0mm×73.5mm |
Compression Ratio | 11.2:1 |
Fuel Delivery | Yamaha Fuel Injection (YFI); dual 48mm throttle bodies |
Ignition | TCI |
Starting | Electric |
Lubrication | Dry sump |
Transmission | Ultramatic V-belt with all-wheel engine braking; L, H, N, R |
Final Drives | On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD |
