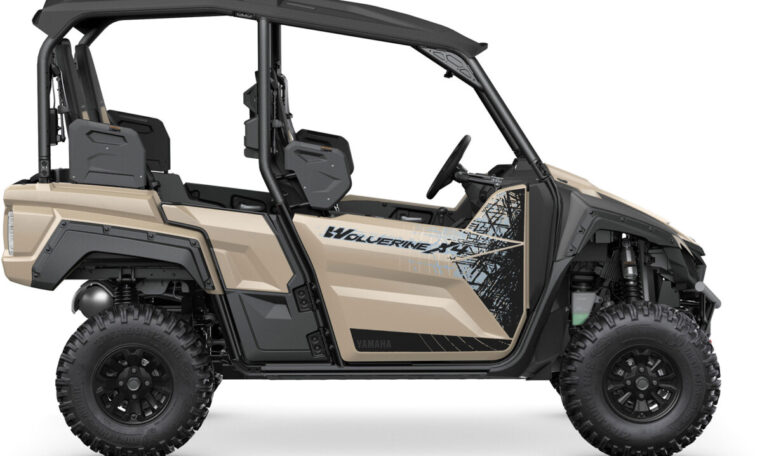

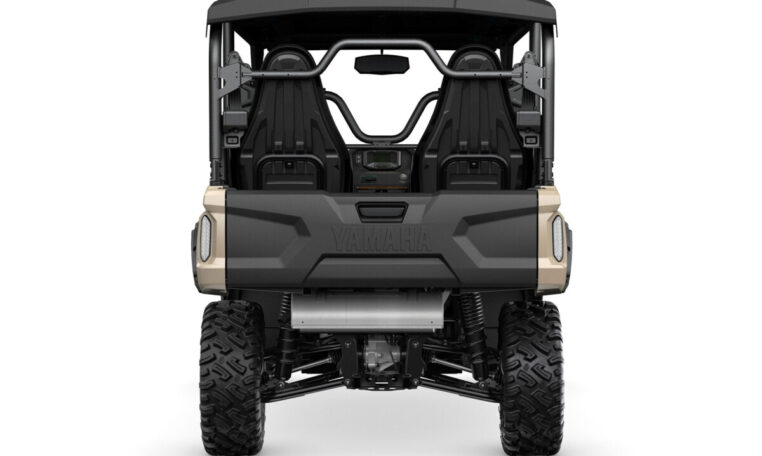

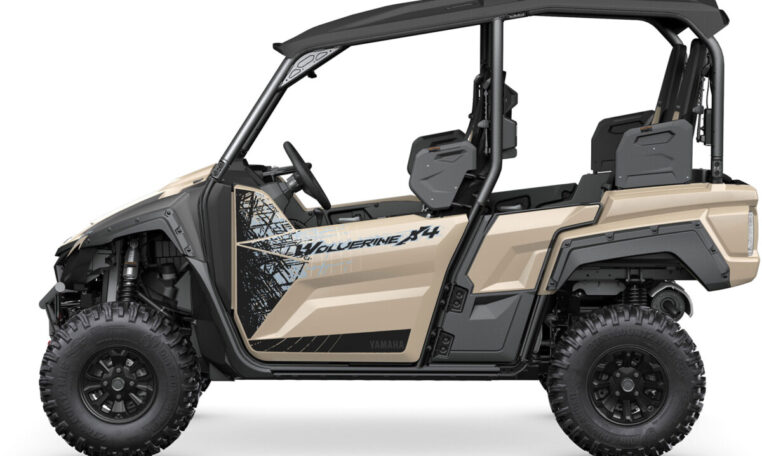

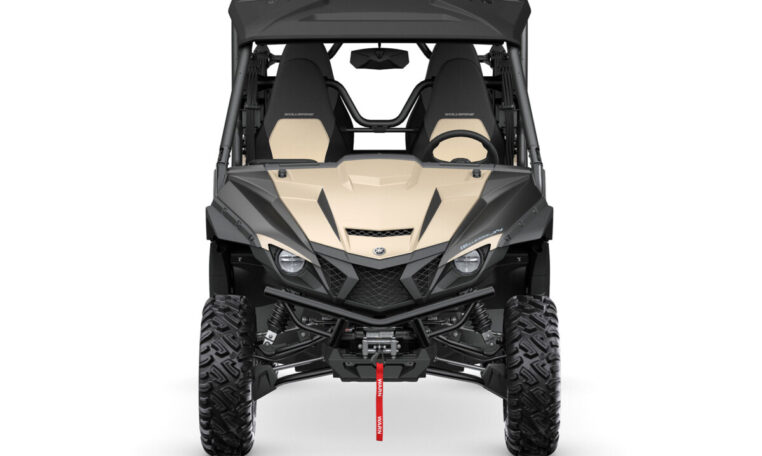

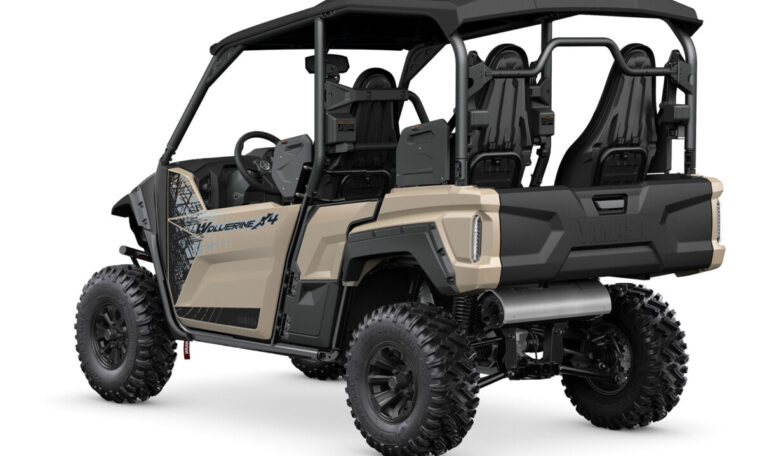

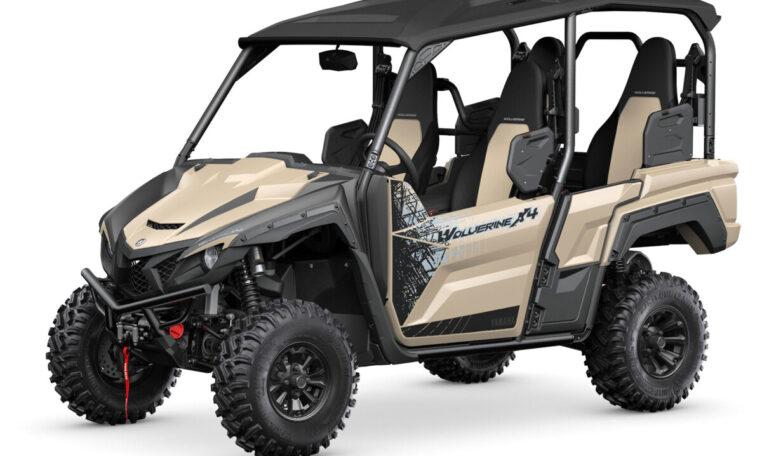

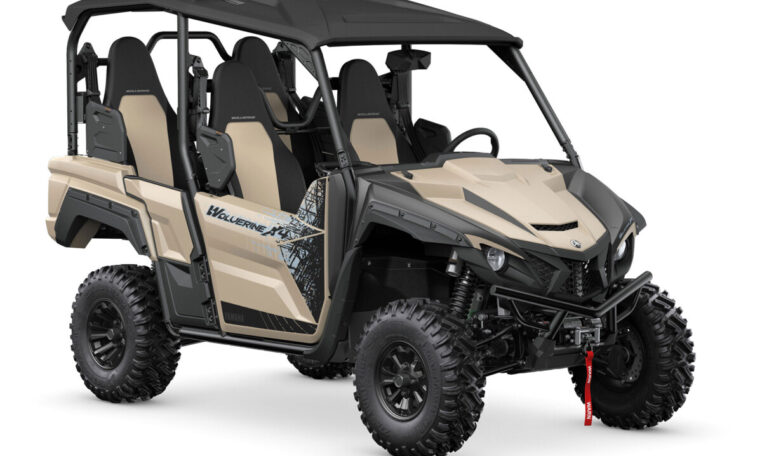

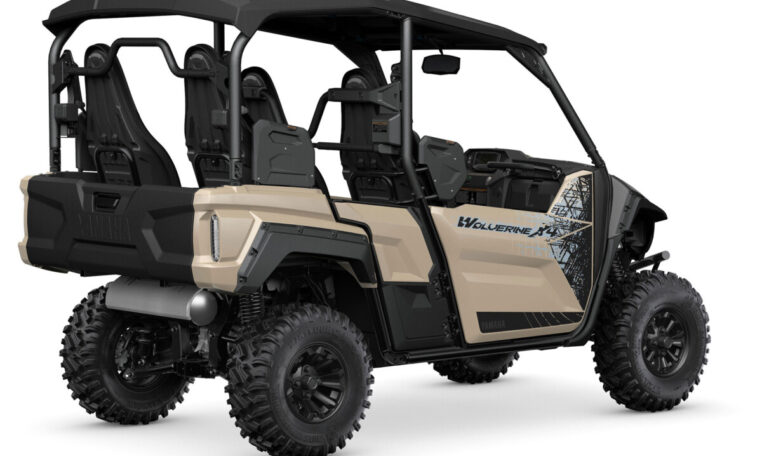

2023 WOLVERINE X4 850 SE

A Special Edition for extreme adventures, the Wolverine X4 850 SE comes complete with factory-installed WARN winch, Special Edition paint, colour-matched wheels and aggressive GBC Dirt Commander tires. You’ll be going places you never thought possible in a 4-seater.

There are no features available

Chassis
Suspension (Front)	Adjustable independent double wishbone with anti-sway bar / 221 mm (8.7") of wheel travel
Suspension (Rear)	Independent Double Wishbone with Anti-sway bar / 236 mm (9.3") of wheel travel
Brakes (Front)	Dual 207 mm discs / twin piston calipers
Brakes (Rear)	Dual 207 mm discs / twin piston calipers / 200 mm parking brake
Tires (Front)	AT 27 X 9 – 12 GBC® Dirt Commander™
Tires (Rear)	AT 27 X 11 – 12 GBC® Dirt Commander™

Critical Data
Length	3,100 mm (122")
Width	1,549 mm (61")
Height	1,974 mm (77.7")
Wheelbase	2,100 mm (82.7")
Turning radius	4,800 mm (189")
Ground Clearance	287 mm (11.3")
Fuel Capacity	35 L (7.7 Imp.Gal)
Wet Weight	789 kg (1,739 lb)
Bed Capacity	272 kg (600 lb)
Towing Capacity	907 kg (2,000 lb)
Warranty	Private use - 1 year (unlimited mileage) Commercial use - 6 months (unlimited mileage)
Colour(s)	Tactical Black/ Carbon Metalic

Engine
Engine	847 cc, liquid-cooled, DOHC, 8-Valve, Parallel Twin
Bore and Stroke	82 mm x 80.2 mm
Compression Ratio	10.5 : 1
Fuel Delivery	Dual Mikuni 36 mm throttle body F.I.
Ignition	TCI
Starting	Electric
Lubrication	Dry sump
Transmission	Yamaha Ultramatic V-Belt, CVT with On-Command (2WD, 4WD limited slip, 4WD diff-lock)
Final Drives	Shaft
