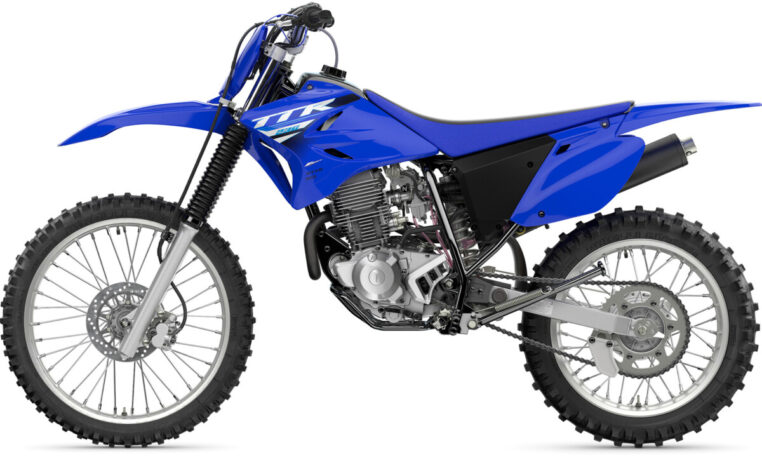

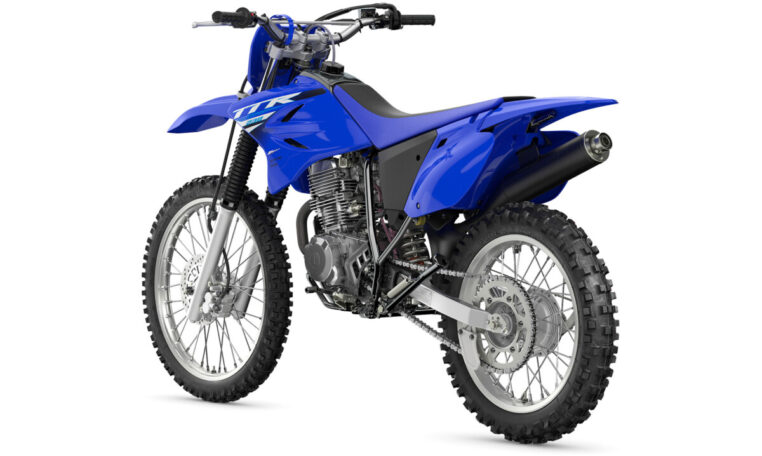

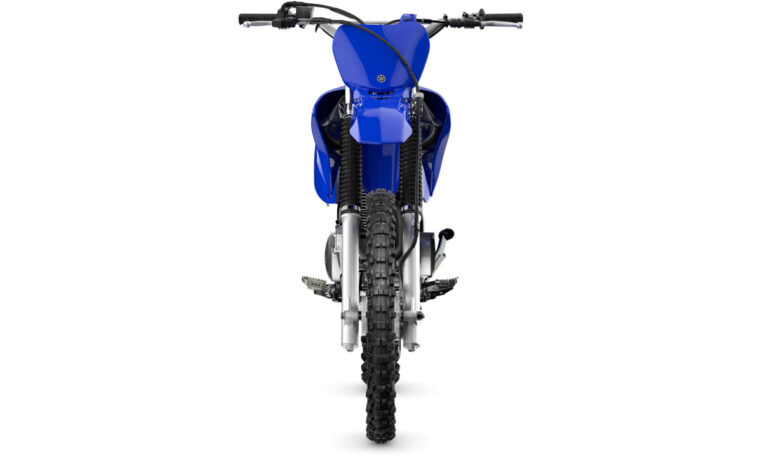

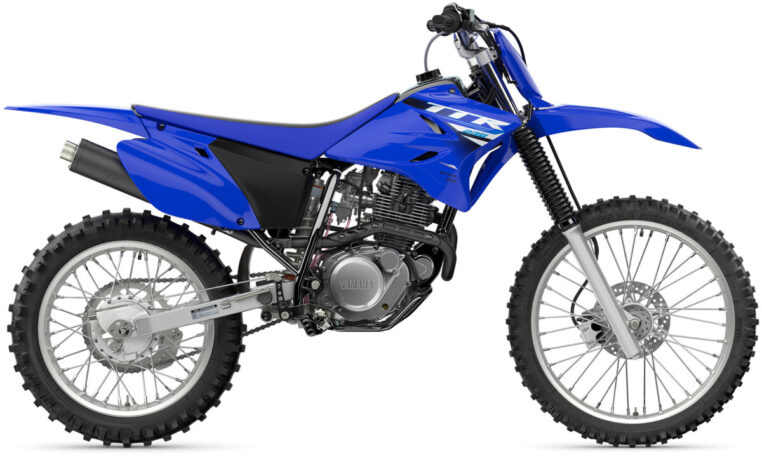

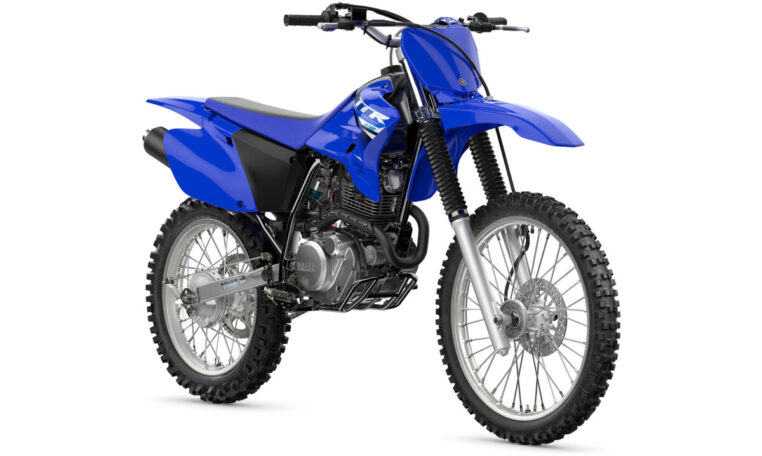

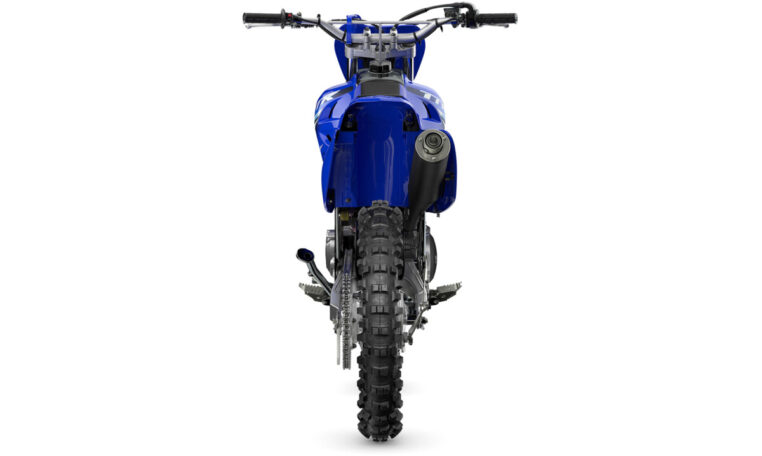

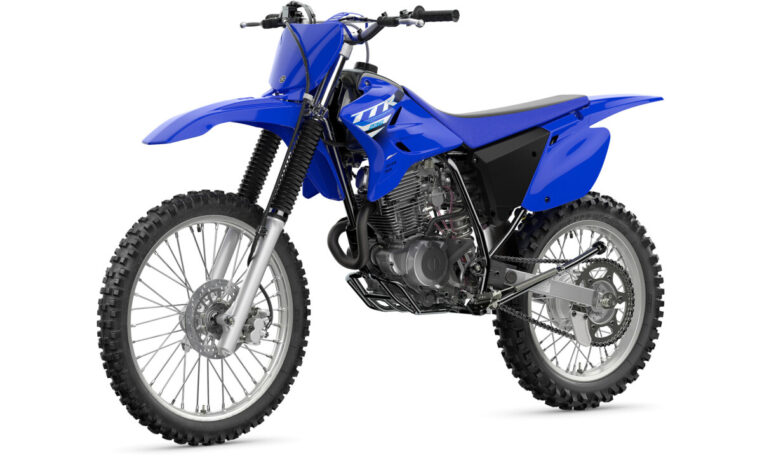

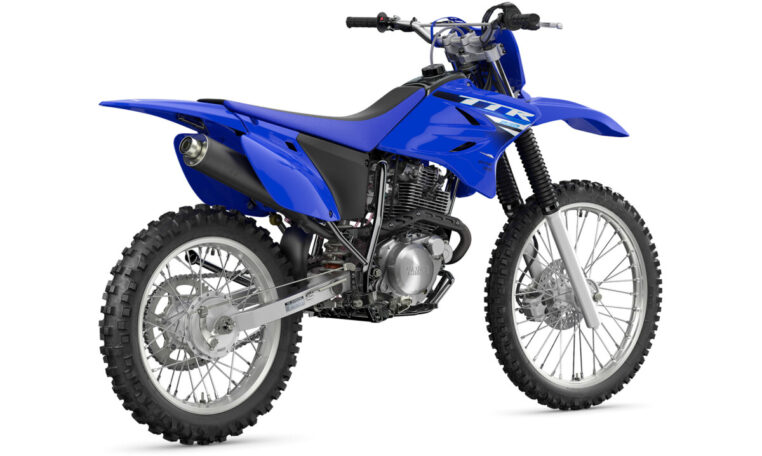

2025 TT-R 230
Easy-to-use. Easy-to-start. Easy-to-maintain. The super-capable TT-R 230 delivers proven performance for riders of all skill levels. The low seat height and smooth, torquey power are perfect for both beginners and experienced riders.
- There are no features available
| Chassis | |
|---|---|
| Brakes (Front) | 220mm disc / twin piston caliper |
| Brakes (Rear) | Drum |
| Suspension (Front) | Adjustable 36 mm fork / 240 mm (9.4") wheel travel |
| Suspension (Rear) | Adjustable link-type Monocross / 220 mm (8.7") wheel travel |
| Tires (Front) | 80/100-21 |
| Tires (Rear) | 100/100-18 |
| Critical Data | |
|---|---|
| Colour(s) | Yamaha Racing Blue |
| Fuel Capacity | 8 litres (1.8 imp. gallons) |
| Ground Clearance | 295mm (11.6") |
| Height | 1,180mm (46.5") |
| Length | 2,065mm (81.3") |
| Seat Height | 870mm (34.3") |
| Wet Weight | 114kg (251 lb) |
| Wheelbase | 1,385mm (54.5") |
| Width | 800mm (31.5") |
| Engine | |
|---|---|
| Bore and Stroke | 70 x 58mm |
| Compression Ratio | 9.5:1 |
| Displacement | 223 cc |
| Engine | 4-stroke, air-cooled, SOHC, 2-valve, single |
| Final Drive | Chain |
| Fuel Delivery | Teikei Y26P |
| Ignition / Starting | CDI / Electric |
| Maximum Torque | 1.9 kg-m (13.7 ft-lb)@ 6,500 rpm |
| Transmission | Constant mesh, 6-speed |
