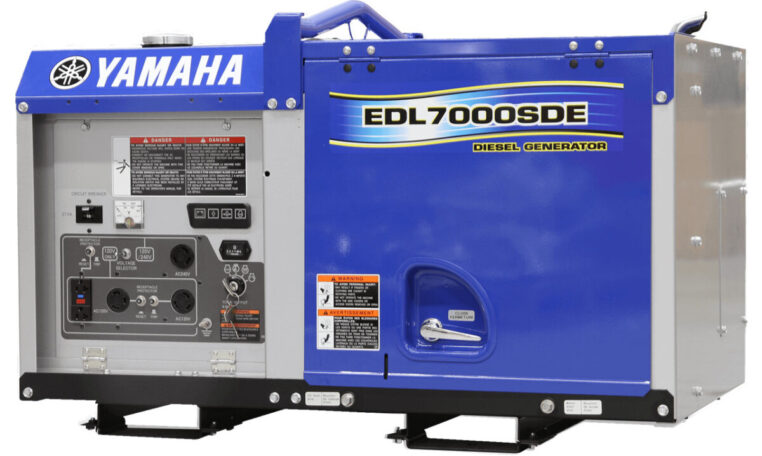

EDL7000SDE

The EDL7000SDE is a compact and lightweight diesel powered unit designed primarily for commercial applications such as construction, agriculture and business uses. However its compact size and reduced noise levels means the EDL7000SDE can also be used for emergency power backup and off grid applications too.

There are no features available

Engine
Model	Z482; 479cc, liquid-cooled (with rad & cooling fan), twin cylinder, 2-valve, 4-stroke diesel
Rated Output Engine / Engine RPM	8.1 KW (10.9 HP) / 3,600 RPM
Starting System	Electric starting
Ignition	Electronic ignition
Recommended Fuel	Ultra Low Sulfur, Diesel fuel No.2-D (above -10C) / Diesel fuel No.1-D (below -10C)
Engine Oil Capacity	2.2L

General
L x W x H mm (in)	1066 x 618 x 698 (42 x24.3 x 27.5")
Dry Weight	235kg (518 lb)
Fuel Tank Capacity (L)	28
Operating Hours (@ rated load)	10 hrs
Noise Level (@ 7 metres)	66.5 dB

Generator
Type	Brush-type, Syncronous, AC generator
Maximum AC Output (watts / amperes)	7 kV / (7,000 W)
Rated AC Output (watts / amperes) - Continuous Use	6.5 kV (6,500 W) / 54.2 A @ 120 V & 27.1 A @ 240 V
AC Voltage & Frequency (HZ)	120 & 240 V / 60 HZ
Neutral	Bonded to frame
AC Receptacle*	L5 30 (30A - 125V) x 2 / L6 30 (30A - 250V) / 5 - 20R (GFCI)

Technical Features
Non-Fuse Circuit Breaker System (NFB)	Standard
Sub Circuit Breaker For Each Receptacle	Standard
Dual 120 & 240 Voltage	Standard
Dedicated Terminal For ATS Switches	Standard
Pilot Lamp (AC output)	Standard
Oil Pressure Warning System (Engine Shut Down)	Standard
Coolant Temperature Warning System (Engine Shutdown)	Standard
GFCI Protected Receptacles	(1) Standard
Hour Meter	Standard
Fuel Level Gauge	Standard
Volt Meter	Standard
